Stainless Steel Flange Type Floating Ball Valve

The ball valve does not have a fixed shaft, known as floating ball valve. The floating ball valve has two seat seals in the valve body, clamping a ball between them, the ball has a through hole, the diameter of the through hole is equal to the inner diameter of the pipe, called the full diameter ball valve; the diameter of the through hole is slightly smaller than the inner diameter of the pipe, called the reduced diameter ball valve.

Size: DN40-DN1600

Pressure Rating: PN10/16, 150LB

Warranty: 18 Month

Brand Name: ZFA Valve

Service: OEM

Email Us

Product Detail

Size & Pressure Rating & Standard
Size	DN50-DN600
Pressure Rating	PN10, PN16, CL150
Connection Standard	ASME B16.5 CL150, EN1092

Material
Body	A216 WCB, A351 CF8, A351 CF8M
Stem	A182 F6a, A182 F304, A182 F316
Trim	A105+HCr(ENP), A182+F304, A182+F316
Seat	RPTFE, A105, A182 F304, A182 F316
Actuator	Handle, Worm Gear, Electric, Pneumatic

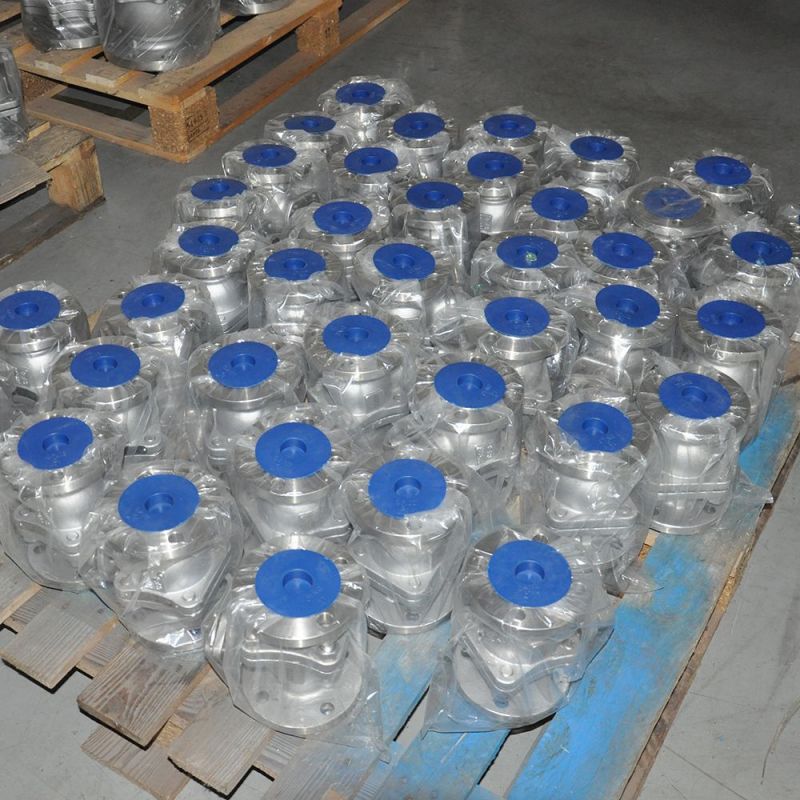

Product Display

Product Advantage

The floating ball valve is suitable for various pipelines of Class150-Class900 and PN10-PN100, used to cut off or connect the fluid in the pipeline. Choose different valve materials for different fluids.

We specialize in manufacturing GOST33259 ball valve, manual and pneumatic operation, also suitable for high pressure and low temperature, single-acting and double-acting pneumatic actuator, also available in various materials such as WCB, 316L, 304.

ZFA industrial valve manufacturer's line of full opening and pressure reducing valves has a unique manufacturing method for optimum performance. The floating ball valve product portfolio includes a variety of standard and custom valves. These ball valve systems can be used in most industries. Floating ball valves from DBV industrial valve manufacturer feature a soft seat design to provide excellent sealing.

Company Advantage

Our valves are compliance with valve international standard of ASTM, ANSI, ISO, BS, DIN, GOST, JIS, KS and so on. Size DN40-DN1200, nominal pressure: 0.1Mpa~2.0Mpa, suitable temperature:-30℃ to 200℃. The products are suitable for non-corrosive and corrosive gas, fluid, semi-fluid, solid, powder and other medium in HVAC, fire control, water conservancy project, water supply and drainage in urban, electric powder, petroleum, chemical industry, and so on.
