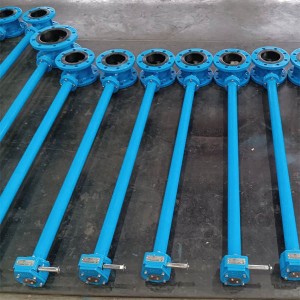

Vulcanized Seat Flanged Long Stem Butterfly Valve
Product Detail
| Size & Pressure Rating & Standard | |
| Size | DN40-DN1800 |
| Pressure Rating | Class125B,Class150B,Class250B |
| Face to Face STD | AWWA C504 |
| Connection STD | ANSI/AWWA A21.11/C111 Flanged ANSI Class 125 |
| Upper Flange STD | ISO 5211 |
| Material | |
| Body | Ductile Iron,WCB |
| Disc | Ductile Iron,WCB |
| Stem/Shaft | SS416, SS431 |
| Seat | NBR, EPDM |
| Bushing | PTFE, Bronze |
| O Ring | NBR, EPDM, FKM |
| Actuator | Hand Lever, Gear Box, Electric Actuator, Pneumatic Actuator |
Product Display
Product Advantage
The main features of the vulcanized seat long stem double flange butterfly valve:
1. Vulcanized valve seat: Made of special vulcanized material, it has good wear resistance and sealing performance, ensuring long-term stable operation of the valve.
2. Extended Stem Butterfly Valve this design is used in underground or buried service applications. The extended stem allows the valve to be operated from the surface or by extending the actuator. This makes it ideal for underground pipelines.
3. Flange connection: Standard flange connection is used to facilitate connection with other equipment and has a wide range of applications.
4. Various actuators: electric actuators, but other actuator also can be selected according to user needs to meet different operating needs,such as worm gear, pneumatic, etc.
5. Scope of application: widely used in pipeline flow control in petroleum, chemical industry, metallurgy, water treatment and other fields.
6. Sealing performance: When the valve is closed, it can ensure complete sealing and prevent fluid leakage.
