WCB Double Flanged Triple Offset Butterfly Valve
Product Detail
| Size & Pressure Rating & Standard | |
| Size | DN40-DN1600 |
| Pressure Rating | PN10, PN16, CL150, JIS 5K, JIS 10K |
| Face to Face STD | API609, BS5155, DIN3202, ISO5752 |
| Connection STD | PN6, PN10, PN16, PN25, 150LB, JIS5K, 10K, 16K, GOST33259 |
| Upper Flange STD | ISO 5211 |
| Material | |
| Body | Cast Iron(GG25), Ductile Iron(GGG40/50), Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, Aluminium Alloy. |
| Disc | DI+Ni, Carbon Steel(WCB A216), Stainless Steel(SS304/SS316/SS304L/SS316L) , Duplex Stainless Steel(2507/1.4529), Bronze, DI/WCB/SS coated with Epoxy Painting/Nylon/EPDM/NBR/PTFE/PFA |
| Stem/Shaft | SS416, SS431, SS304, SS316, Duplex Stainless Steel, Monel |
| Seat | Metal |
| Bushing | PTFE, Bronze |
| O Ring | NBR, EPDM, FKM |
| Actuator | Hand Lever, Gear Box, Electric Actuator, Pneumatic Actuator |

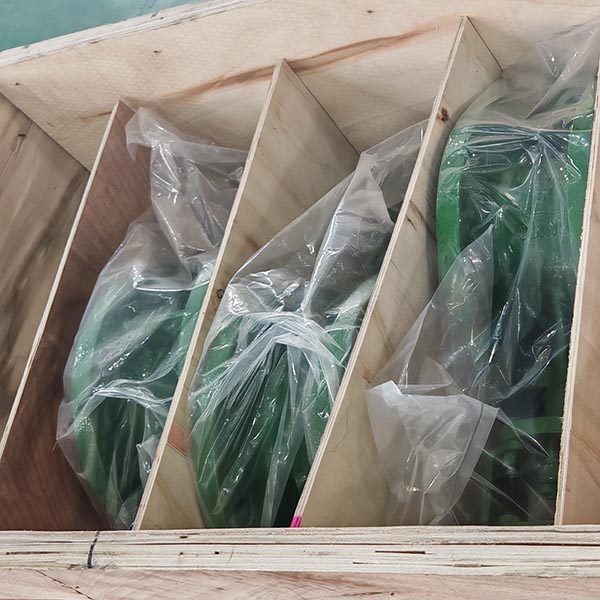

Product Display
Product Advantage
The triple offset design ensures that the disc is away from the seat at a certain angle, thus reducing friction and wear during operation.
WCB (Cast Carbon Steel) Valve Body: Made of WCB (A216) carbon steel, it has excellent mechanical strength, pressure resistance and durability.
Metal-to-metal seal: enables it to withstand high temperatures and ensure reliable sealing under extreme conditions.
Fireproof Design: The design complies with API 607 and API 6FA fireproof standards. In the event of a fire, the valve maintains a reliable seal to prevent the spread of hazardous media.
High temperature and high pressure resistance: Due to the sturdy structure and metal sealing system, the valve can withstand high temperatures and high pressures, making it suitable for steam, oil, gas and other high-energy systems.
Low torque operation: The triple offset design reduces the friction between the disc and the seat, requiring lower operating torque.
