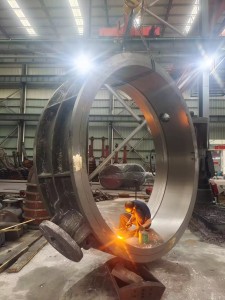

The big-size butterfly valves usually refer to butterfly valves with a diameter larger than DN500, usually connected by flanges, wafers. There are two kinds of large-diameter butterfly valves: concentric butterfly valve and eccentric butterfly valves.
How to choice the larger size butterfly valve?
1. When the valve size is small than DN1000, the working pressure is below PN16, and the working temperature is below 80℃, we usually recommend for concentric line butterfly valve as it will be much more economical.
2. Usually, when the diameter is larger than 1000, we recommend using an eccentric butterfly valve, so that the torque of the valve can be effectively reduced due to the eccentric angle of the valve, which is conducive to the opening and closing of the valve. In addition, the eccentric butterfly valve can reduce or eliminate the friction between the valve plate and the valve seat due to the eccentric angle, and improve the service life of the valve.
3. At the same time, the introduction of metal seats improves the temperature and pressure resistance of butterfly valves and broadens the application range of the valves. So the midline large diameter butterfly valve can usually only be used in low-pressure conditions such as water, while the eccentric butterfly valve can be used in environments with more complex working conditions.
Triple Offset Butterfly Valve Video
Where is Big Size Butterfly valve used
Big-size butterfly valves are used in a wide range of industrial applications where a large flow rate is required. Some common applications for big-size butterfly valves include:
1. Water treatment plants: Butterfly valves are commonly used in water treatment plants to control the flow of water through large pipes.
2. Power plants: Butterfly valves are used in power plants to control the flow of water or steam through the pipes that feed the turbines.
3. Chemical processing plants: Butterfly valves are used in chemical processing plants to control the flow of chemicals through the pipes.
4. Oil and gas industry: Butterfly valves are used in the oil and gas industry to control the flow of oil, gas, and other fluids through pipelines.
5. HVAC systems: Butterfly valves are used in heating, ventilation, and air conditioning (HVAC) systems to control the flow of air through the ducts.
6. Food and beverage industry: Butterfly valves are used in the food and beverage industry to control the flow of liquids and gases through processing equipment.
Overall, big-size butterfly valves are used in any application where a large flow rate needs to be controlled and shut off quickly and efficiently.
What kind of actuators are commonly used for large-diameter butterfly valves?
1. Worm Gear-The worm gear is suitable for large size butterfly valves. And it is an Economical and safe selection, It does not need to depend on the site environment, just enough room to operate. The worm gear box can increase the torque, but it will slow down the switching speed. Worm gear butterfly valve can be self-locking and will not reverse drive. Maybe there is a position indicator.
2. Electric Actuator-Electric large-diameter butterfly valve needs to provide one-way voltage or three-phase voltage at the site, usually a one-way voltage of 22V, the three-phase voltage of 380V, usually the more well-known brands are Rotork. Applicable to hydropower applications, metallurgical applications, marine applications, food and pharmaceutical applications, etc. play a huge role
3. Hydraulic Actuator-The large diameter hydraulic butterfly valve is with hydraulic station, his advantages are low cost, stable and reliable work, safe operation, and the ability to open and close quickly.
4.Pneumatic Actuator-Large Pneumatic butterfly valve selects three eccentric multi-level metal hard seal butterfly valve, which is high temperature resistant, flexible, easy to open and close, and securely sealed. Large-diameter butterfly valve actuator, according to the site working conditions to make a choice.Hydraulic control is usually used on general hydropower plants. which is widely used in metallurgical industry on the blast furnace gas pipeline system to avoid gas tempering in the pipe.
The application of big size butterfly valve
Large-diameter electric butterfly valve is widely used in power station heating system and catalytic cracking main fan duct system and steel, metallurgy, chemical and other industrial systems, as well as environmental protection, water treatment, high-rise building water supply and drainage pipeline for cutting off or regulating the flow role.
According to the choice of materials can be applied to non-corrosive conditions carbon steel: -29 ℃ ~ 425 ℃ stainless steel: -40 ℃ ~ 650 ℃; applicable media for air, water, sewage, steam, gas, oil, etc. Electric flange type hard seal butterfly valve belongs to the metal hard seal butterfly valve, using advanced multi-level three eccentric structure, is composed of DZW electric actuator Flange is metal hard seal butterfly valve. Pressure level PN10-25=1.02.5MPa; caliber: DN50-DN2000mm. material: WCB cast steel carbon steel; 304 stainless steel/316 stainless steel/304L stainless steel/316L stainless steel.
Large diameter electric butterfly valve has a reliable sealing structure for two-way media cutoff, its leakage is zero; no need to remove the valve from the pipeline to replace the seal (diameter greater than DN700); bearings for self-lubricating bearings, no oil injection, low friction; vertical, horizontal two types of installation, according to the needs of supply; valve body, butterfly plate material can be used alloy cast iron, to apply to seawater media.
Who are the manufacturers of large diameter butterfly valves in China
1. Neway Valve
2. SUFAH VALVE
3. ZFA VALVE
4. YUANDA VALVE
5.COVINA VALVE
6. JIANGYI VALVE
7.ZhongCheng valve
What are the standards for large size butterfly valves
Data Sheet Of The large Size of Butterfly Valve
| Standard Design standard | API609,AWWA C504,BS EN593/BS5155/ISO5752 |
| SIZE & CONNECTIONS: | DN80 to D3000 |
| MEDIUM: | Air, Inert Gas, Oil, Seawater, Wastewater, Water |
| MATERIALS: | Cast Iron / Ductile Iron/ Carbon Steel / Stainless Steel / Alum Bronze |
| Flange Connection Size: |
ANSI B 16.5, ANSI B 16.10,ASME B16.1 CL125/CL250, pn10/16, AS 2129, JIK10K |
| Structure length: | ANSI B 16.10,AWWA C504,EN558-1-13/EN558-1-14 |
Material Of Parts
| PART NAME | Material |
| BODY | Ductile Iron, Carbon steel, Stainless steel, Duplex steel, Alum-Bronze |
| DISC / PLATE | GRAPHITE /SS304 /SS316 /Monel /316+STL |
| SHAFT / STEM | SS431/SS420/SS410/SS304/SS316 /17-4PH /duplex steel |
| SEAT / LINING | EPDM/NBR/GRAPHITE /SS304 /SS316 /Monel /SS+STL/SS+ graphite/metal to metal |
| BOLTS / NUTS | SS/SS316 |
| BUSHING | 316L+RPTFE |
| GASKET | SS304+GRAPHITE /PTFE |
| BOTTOM COVER | STEEL /SS304+GRAPHITE |
We Tianjin Zhongfa Valve Co., Ltd was founded in 2006. We are one of the triple offset butterfly valve manufacturers in Tianjin China. We keep high efficiency and strict management of quality control and provide timely and effective pre-sale, sale, and after-sales service in order to achieve effectiveness and customer satisfaction. We have gotten the ISO9001, CE Certification.
