Understanding High-Performance Butterfly Valves
High-performance butterfly valves enhance the vital role butterfly valves play in industrial applications. These valves can effectively control the flow of fluids. Because high-performance butterfly valves are highly resistant to extreme conditions. High temperatures and high pressures do not affect their performance. The industry relies on them for reliable operation and stability.
1. What is a high-performance butterfly valve?
Although the high-performance butterfly valve adopts a unique design, the basic structure and operating principle are the same as ordinary butterfly valves. It includes a valve body, a valve disc, a shaft and a valve seat. The valve disc rotates around the shaft to control the flow of fluids. The valve seat provides a seal to prevent leakage.
High-performance butterfly valves rely on double-eccentric butterfly valves, and its operation relies on advanced mechanisms. The double-offset design valve disc moves away from the valve seat early in the opening process, thereby reducing friction and wear on the sealing surface.
High-performance butterfly valves excel in high-pressure environments. Industries such as oil and gas require reliable valve performance. These valves can withstand pressures that would damage standard valves. Superior sealing capabilities prevent leakage under high pressure.
Industry must understand what high-performance butterfly valves are? When to use them? The right choice ensures efficient operation and system stability. High-performance butterfly valves provide the reliability required for demanding applications.
2. Features of high-performance butterfly valves, differences from ordinary butterfly valves
2.1 Material selection

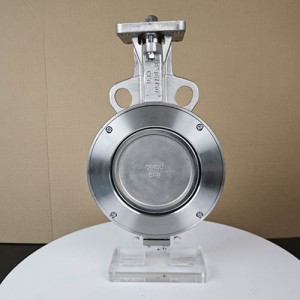

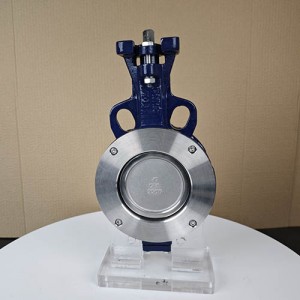

High-performance butterfly valves perform well in harsh environments, let alone ordinary environments, which is simply overkill, so good steel should be used on the blade. Strong materials improve durability and reliability. Stainless steel and WCB are common choices. Stainless steel is corrosion-resistant and resistant to extreme temperatures. The ability to withstand harsh conditions makes these valves indispensable.
2.2 Sealing technology
Sealing technology plays a vital role in valve efficiency. Advanced seals prevent leakage and maintain pressure integrity. Double eccentric designs provide excellent sealing capabilities. These designs minimize friction and wear on the sealing surface. The result is longer service life and reduced maintenance requirements.
2.3 Pressure rating
High-performance butterfly valves can effectively handle high-pressure environments. Typically up to Class 300 (PN40). The ability to maintain integrity under pressure is critical. Industries such as oil and gas require reliable pressure management.
2.4 Temperature resistance
Temperature resistance is a key indicator of valve performance. HPBVs can operate at high temperatures, usually up to 500°F (260°C) or higher. The ability to operate at high temperatures enhances their versatility. This ability makes them suitable for steam systems, power generation, and chemical processing.
3. Differences from ordinary butterfly valves
Differences between high-performance butterfly valves and ordinary concentric butterfly valves.
3.1. Structural design
High-performance butterfly valves: generally double eccentric structure, the contact between the valve plate and the sealing surface is reduced. So the sealing material has a longer life.
Ordinary butterfly valves: concentric structure, the valve plate and the sealing surface have more contact when opening and closing, and the sealing surface wears faster.
3.2. Pressure level
High-performance butterfly valves: generally suitable for medium and high pressure systems, with strong pressure bearing capacity (up to PN25, PN40 and above).
Ordinary butterfly valves: mostly used in low pressure systems, generally suitable for PN10, PN16 working pressure.
3.3. Temperature range
High-performance butterfly valves: can be used in high temperature conditions, and can maintain sealing performance at extreme temperatures.
Ordinary butterfly valves: generally suitable for low temperature or normal temperature conditions, with a limited temperature range.
3.4. Application scenarios
High-performance butterfly valves: widely used in industrial fields such as petrochemicals, natural gas, steam, water treatment, high temperature and high pressure conditions, suitable for fluid control under harsh conditions.
Ordinary butterfly valves: mainly used in relatively mild conditions such as low-pressure water treatment systems, HVAC, and ordinary industrial processes, and the use conditions are relatively simple.
3.5. Material selection
High-performance butterfly valves: The valve body is usually made of corrosion-resistant and high-temperature resistant materials such as stainless steel, wcb, and alloy steel, and the seals are mostly metal seals or enhanced soft seals.
Ordinary butterfly valves: The valve body materials are mostly cast iron or ductile iron, and the seals are mostly soft sealing materials such as rubber and polytetrafluoroethylene.
3.6. Price
High-performance butterfly valves: Due to complex design, advanced materials, and fine production processes, the cost is high, so the price is relatively expensive.
Ordinary butterfly valves: simple structure, low cost, and relatively economical price.
4. Application of high-performance butterfly valves
4.1 Oil and gas
In the upstream mining and downstream refining processes of the oil and gas industry, high-performance butterfly valves play a key role. Because high pressure and high temperature fluids need to be precisely managed to ensure operational safety and efficiency. The excellent sealing ability of high-performance butterfly valves prevents leaks and maintains process integrity.
4.2 Chemical Processing
Corrosive chemicals are common in chemical processing plants. High-performance butterfly valves have durable construction and excellent sealing capabilities to fully meet the challenges of such environments.
4.3 Power Generation
Power generation facilities benefit from high-performance butterfly valves, especially in steam systems and turbine operations. Precise control of superheated steam is essential to achieve optimal performance and energy efficiency.
4.4 Water Treatment
Water treatment facilities utilize high-performance butterfly valves to manage the flow of water and wastewater. These valves can effectively handle different pressures and temperatures. The ability to operate reliably under harsh conditions ensures an efficient treatment process.
5. Selection Considerations
5.1 Application Requirements
High-performance butterfly valves must meet specific application needs. Fluid type and characteristics should be evaluated before purchasing. Pressure and temperature ratings must match the operating requirements. Selecting the right valve ensures optimal performance and safety.
5.2 Environmental Conditions
Environmental conditions play a vital role in butterfly valve selection. High temperatures and corrosive environments require rugged materials. Stainless steel or PTFE offer excellent corrosion resistance. The right choice increases service life and reliability.
In summary
High-performance butterfly valves offer significant advantages in industrial operations. By implementing these valves into their systems, industries benefit from increased efficiency and reliability. The robust design ensures optimal performance under extreme conditions, improving safety and economic benefits.
Key Benefits:
• Operational efficiency: High-performance valves offer the lowest pressure drop and compact installation.
• Cost-effectiveness: Lightweight design reduces material costs and maintenance requirements.
• Versatility: Suitable for high-temperature and large-size applications.
Industries should prioritize the selection of appropriate high-performance butterfly valves to ensure long-term stability and efficiency.
